FieldTalk Modbus Master C++ Library  Library version 2.9.0
Introduction

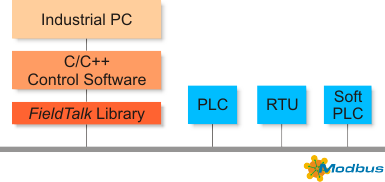

The FieldTalk Modbus® Master C++ Library provides connectivity to Modbus slave compatible devices and applications.


Typical applications are Modbus based Supervisory Control and Data Acquisition Systems (SCADA), Modbus data concentrators, Modbus gateways, User Interfaces and Factory Information Systems (FIS).

Features:

  • Robust design suitable for real-time and industrial applications
  • Full implementation of Bit Access and 16 Bits Access Function Codes as well as a subset of the most commonly used Diagnostics Function Codes
  • Standard Modbus bit and 16-bit integer data types (coils, discretes & registers)
  • Support for 32-bit integer, modulo-10000 and float data types, including Daniel/Enron protocol extensions
  • Configurable word alignment for 32-bit types (big-endian, little-endian)
  • Support of Broadcasting
  • Failure and transmission counters
  • Transmission and connection time-out supervision
  • Detailed transmission and protocol failure reporting using error codes

Library Structure

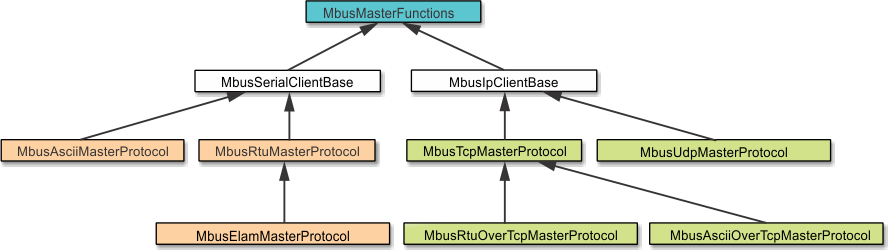

The library's API is organised into one class for each Modbus protocol flavour and a common base class, which applies to all Modbus protocol flavours. Because the two serial-line protocols Modbus ASCII and Modbus RTU share some common code, an intermediate base class implements the functions specific to the serial protocols.


The base class MbusMasterFunctions contains all protocol unspecific functions, in particular the data and control functions defined by Modbus. All Modbus protocol flavours inherit from this base class.

The class MbusAsciiMasterProtocol implements the Modbus ASCII protocol, the class MbusRtuMasterProtocol implements the Modbus RTU protocol. The class MbusTcpMasterProtocol implements the MODBUS/TCP protocol and the class MbusRtuOverTcpMasterProtocol the Encapsulated Modbus RTU master protocol (also known as RTU over TCP or RTU/IP).

In order to use one of the four Modbus protocols, the desired Modbus protocol flavour class has to be instantiated:

MbusRtuMasterProtocol mbusProtocol;

After a protocol object has been declared and opened, data and control functions can be used:

mbusProtocol.writeSingleRegister(slaveId, startRef, 1234);
