Base class for serial serial master protocols. More...

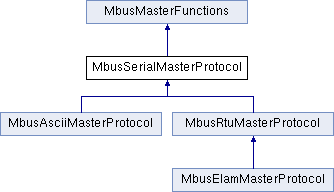

Inheritance diagram for MbusSerialMasterProtocol:

Public Member Functions
	MbusSerialMasterProtocol ()
	Creates new instance.
synchronized void	openProtocol (String portName, int baudRate, int dataBits, int stopBits, int parity) throws IOException, UnsupportedCommOperationException, PortInUseException
	Opens a Modbus serial port with specific port parameters.
synchronized void	closeProtocol () throws IOException
	Closes the serial port and releases any system resources associated with the port.
boolean	isOpen ()
	Returns whether the port is open or not.
Static Public Attributes
static final int	DATABITS_7 = SerialPort.DATABITS_7
	7 data bits
static final int	DATABITS_8 = SerialPort.DATABITS_8
	8 data bits
static final int	STOPBITS_1 = SerialPort.STOPBITS_1
	1 stop bit
static final int	STOPBITS_1_5 = SerialPort.STOPBITS_1_5
	1.5 stop bits
static final int	STOPBITS_2 = SerialPort.STOPBITS_2
	2 stop bits
static final int	PARITY_NONE = SerialPort.PARITY_NONE
	no parity
static final int	PARITY_ODD = SerialPort.PARITY_ODD
	odd parity
static final int	PARITY_EVEN = SerialPort.PARITY_EVEN
	even parity
static final int	PARITY_MARK = SerialPort.PARITY_MARK
	mark parity
static final int	PARITY_SPACE = SerialPort.PARITY_SPACE
	space parity
Bit Access
Table 0:00000 (Coils) and Table 1:0000 (Input Status)
synchronized void	readCoils (int slaveAddr, int startRef, boolean[] bitArr) throws IOException, BusProtocolException
	Modbus function 1 (01 hex), Read Coil Status/Read Coils.
synchronized void	readInputDiscretes (int slaveAddr, int startRef, boolean[] bitArr) throws IOException, BusProtocolException
	Modbus function 2 (02 hex), Read Inputs Status/Read Input Discretes.
synchronized void	writeCoil (int slaveAddr, int bitAddr, boolean bitVal) throws IOException, BusProtocolException
	Modbus function 5 (05 hex), Force Single Coil/Write Coil.
synchronized void	forceMultipleCoils (int slaveAddr, int startRef, boolean[] bitArr) throws IOException, BusProtocolException
	Modbus function 15 (0F hex), Force Multiple Coils.
Register Access (16-bit, 32-bit and floating point)
Table 4:00000 (Holding Registers) and Table 3:00000 (Input Registers)
synchronized void	readMultipleRegisters (int slaveAddr, int startRef, short[] regArr) throws IOException, BusProtocolException
	Modbus function 3 (03 hex), Read Holding Registers/Read Multiple Registers.
synchronized void	readMultipleRegisters (int slaveAddr, int startRef, int[] int32Arr) throws IOException, BusProtocolException
	Modbus function 3 (03 hex) for 32-bit int data types, Read Holding Registers/Read Multiple Registers as int data.
synchronized void	readMultipleRegisters (int slaveAddr, int startRef, float[] float32Arr) throws IOException, BusProtocolException
	Modbus function 3 (03 hex) for 32-bit float data types, Read Holding Registers/Read Multiple Registers as float data.
synchronized void	readInputRegisters (int slaveAddr, int startRef, short[] regArr) throws IOException, BusProtocolException
	Modbus function 4 (04 hex), Read Input Registers.
synchronized void	readInputRegisters (int slaveAddr, int startRef, int[] int32Arr) throws IOException, BusProtocolException
	Modbus function 4 (04 hex) for 32-bit int data types, Read Input Registers as int data.
synchronized void	readInputRegisters (int slaveAddr, int startRef, float[] float32Arr) throws IOException, BusProtocolException
	Modbus function 4 (04 hex) for 32-bit float data types, Read Input Registers as float data.
synchronized void	writeSingleRegister (int slaveAddr, int regAddr, short regVal) throws IOException, BusProtocolException
	Modbus function 6 (06 hex), Preset Single Register/Write Single Register.
synchronized void	writeMultipleRegisters (int slaveAddr, int startRef, short[] regArr) throws IOException, BusProtocolException
	Modbus function 16 (10 hex), Preset Multiple Registers/Write Multiple Registers.
synchronized void	writeMultipleRegisters (int slaveAddr, int startRef, int[] int32Arr) throws IOException, BusProtocolException
	Modbus function 16 (10 hex) for 32-bit int data types, Preset Multiple Registers/Write Multiple Registers with int data.
synchronized void	writeMultipleRegisters (int slaveAddr, int startRef, float[] float32Arr) throws IOException, BusProtocolException
	Modbus function 16 (10 hex) for 32-bit float data types, Preset Multiple Registers/Write Multiple Registers with float data.
synchronized void	maskWriteRegister (int slaveAddr, int regAddr, short andMask, short orMask) throws IOException, BusProtocolException
	Modbus function 22 (16 hex), Mask Write Register.
synchronized void	readWriteRegisters (int slaveAddr, int readRef, short[] readArr, int writeRef, short[] writeArr) throws IOException, BusProtocolException
	Modbus function 23 (17 hex), Read/Write Registers.
Diagnostics

synchronized byte	readExceptionStatus (int slaveAddr) throws IOException, BusProtocolException
	Modbus function 7 (07 hex), Read Exception Status.
Custom Function Codes

synchronized void	readHistoryLog (int slaveAddr, int channelNo, int resolution, short readArr[]) throws IOException, BusProtocolException
	Vendor Specific Modbus function 100 (64 hex), Read History Log.
Protocol Configuration

synchronized void	setTimeout (int timeOut)
	Configures time-out.
int	getTimeout ()
	Returns the operation time-out value.
synchronized void	setPollDelay (int pollDelay)
	Configures poll delay.
int	getPollDelay ()
	Returns the poll delay time.
synchronized void	setRetryCnt (int retryCnt)
	Configures the automatic retry setting.
int	getRetryCnt ()
	Returns the automatic retry count.
Transmission Statistic Functions

synchronized long	getTotalCounter ()
	Returns how often a transmit/receive cycle has been executed.
synchronized void	resetTotalCounter ()
	Resets total transmit/receive cycle counter.
synchronized long	getSuccessCounter ()
	Returns how often a transmit/receive cycle was successful.
synchronized void	resetSuccessCounter ()
	Resets successful transmit/receive counter.
Slave Configuration

void	configureStandard32BitMode ()
	Configures all slaves for Standard 32-bit Mode.
synchronized void	configureStandard32BitMode (int slaveAddr)
	Configures a slave for Standard 32-bit Register Mode.
void	configureSingleReg32BitMode ()
	Configures all slaves for Single Register 32-bit Mode.
synchronized void	configureSingleReg32BitMode (int slaveAddr)
	Configures all slaves for Single Register 32-bit Mode.
void	configureCountFromOne ()
	Configures the reference counting scheme to start with one for all slaves.
synchronized void	configureCountFromOne (int slaveAddr)
	Configures a slave's reference counting scheme to start with one.
void	configureCountFromZero ()
	Configures the reference counting scheme to start with zero for all slaves.
synchronized void	configureCountFromZero (int slaveAddr)
	Configures a slave's reference counting scheme to start with zero.
void	configureLittleEndianInts ()
	Disables word swapping for int data type functions for all slaves.
synchronized void	configureLittleEndianInts (int slaveAddr)
	Disables word swapping for int data type functions on a per slave basis.
void	configureBigEndianInts ()
	Configures int data type functions to do a word swap for all slaves.
synchronized void	configureBigEndianInts (int slaveAddr)
	Enables int data type functions to do a word swap on a per slave basis.
void	configureLittleEndianFloats ()
	Disables float data type functions to do a word swap for all slaves.
synchronized void	configureLittleEndianFloats (int slaveAddr)
	Disables float data type functions to do a word swap on a per slave basis.
void	configureSwappedFloats ()
	Configures float data type functions to do a word swap for all slaves.
synchronized void	configureSwappedFloats (int slaveAddr)
	Enables float data type functions to do a word swap on a per slave basis.

Detailed Description

Base class for serial serial master protocols.

This base class realises the Modbus serial master protocols. It provides functions to open and to close serial port as well as data and control functions which can be used at any time after the protocol has been opened. The data and control functions are organized different conformance classes. For a more detailed description of the data and control functions see section Data and Control Functions for all Modbus Protocol Flavours.

It is possible to instantiate multiple instances for establishing multiple connections on different serial ports (They should be executed in separate threads).

All functions have been implemented thread-safe. It is also possible to instantiate multiple instances for establishing multiple connections on different serial ports.

See also:: Data and Control Functions for all Modbus Protocol Flavours, Serial Protocols; MbusRtuMasterProtocol, MbusElamMasterProtocol, MbusAsciiMasterProtocol, MbusTcpMasterProtocol

Member Function Documentation

synchronized void openProtocol	(	String	portName,
		int	baudRate,
		int	dataBits,
		int	stopBits,
		int	parity
	)			throws IOException, UnsupportedCommOperationException, PortInUseException

Opens a Modbus serial port with specific port parameters.

This function opens the serial port. After a port has been opened data and control functions can be used.

Note:: The default time-out for the data transfer is 1000 ms.; The default poll delay is 0 ms.; Automatic retries are switched off (retry count is 0).; The Modbus standard requires two stop bits if no parity is chosen. This library is not enforcing this but it is a recommended configuration.

Parameters:

	portName	Serial port identifier (e.g. "COM1", "/dev/ser1 or /dev/ttyS0")
	baudRate	The port baudRate in bps (typically 1200 - 19200)
	dataBits	DATABITS_7: 7 data bits (ASCII protocol only), DATABITS_8: data bits
	stopBits	STOPBITS_1: 1 stop bit, STOPBITS_1_5: 1.5 stop bits, STOPBITS_2: 2 stop bits
	parity	PARITY_NONE: no parity, PARITY_ODD: odd parity, PARITY_EVEN: even parity, PARITY_MARK: mark parity, PARITY_SPACE: space parity

Exceptions:

	IOException	An I/O error occured
	UnsupportedCommOperationException	A communication parameter is not supported
	PortInUseException	Port is already used by somedbody else
	IllegalArgumentException	A parameter is invalid

Reimplemented in MbusAsciiMasterProtocol, and MbusRtuMasterProtocol.

synchronized void closeProtocol ( ) throws IOException [virtual]

Closes the serial port and releases any system resources associated with the port.

Exceptions:

IOException

An I/O error occured

Implements MbusMasterFunctions.

boolean isOpen ( ) [virtual]

Returns whether the port is open or not.

Return values:

	true	= open
	false	= closed

Implements MbusMasterFunctions.

synchronized void readCoils	(	int	slaveAddr,
		int	startRef,
		boolean[]	bitArr
	)			throws IOException, BusProtocolException `[inherited]`

Modbus function 1 (01 hex), Read Coil Status/Read Coils.

Reads the contents of the discrete outputs (coils, 0:00000 table).

Parameters:

	slaveAddr	Modbus address of slave device or unit identifier (Range: 1 - 255)
	startRef	Start reference (Range: depends on configuration setting)
	bitArr	Buffer which will contain the data read. The length of the array determines how many coils are read (Range: 1-2000).

Exceptions:

	IOException	An I/O error occured
	IllegalArgumentException	A parameter is out of range
	BusProtocolException	A protocol failure occured. See descendants of BusProtocolException for a more detailed failure list.

Note:: No broadcast supported

synchronized void readInputDiscretes	(	int	slaveAddr,
		int	startRef,
		boolean[]	bitArr
	)			throws IOException, BusProtocolException `[inherited]`

Modbus function 2 (02 hex), Read Inputs Status/Read Input Discretes.

Reads the contents of the discrete inputs (coils, 1:00000 table).

Parameters:

	slaveAddr	Modbus address of slave device or unit identifier (Range: 1 - 255)
	startRef	Start reference (Range: depends on configuration setting)
	bitArr	Buffer which will contain the data read. The length of the array determines how many coils are read (Range: 1-2000).

Exceptions:

	IOException	An I/O error occured
	IllegalArgumentException	A parameter is out of range
	BusProtocolException	A protocol failure occured. See descendants of BusProtocolException for a more detailed failure list.

Note:: No broadcast supported

synchronized void writeCoil	(	int	slaveAddr,
		int	bitAddr,
		boolean	bitVal
	)			throws IOException, BusProtocolException `[inherited]`

Modbus function 5 (05 hex), Force Single Coil/Write Coil.

Sets a single discrete output variable (coil, 0:00000 table) to either ON or OFF.

Parameters:

	slaveAddr	Modbus address of slave device or unit identifier (Range: 0 - 247)
	bitAddr	Coil address (Range: depends on configuration setting)
	bitVal	true sets, false clears discrete output variable

Exceptions:

	IllegalStateException	Port or connection is closed
	IOException	An I/O error occured
	IllegalArgumentException	A parameter is out of range
	BusProtocolException	A protocol failure occured. See descendants of BusProtocolException for a more detailed failure list.

Note:: Broadcast supported for serial protocols

synchronized void forceMultipleCoils	(	int	slaveAddr,
		int	startRef,
		boolean[]	bitArr
	)			throws IOException, BusProtocolException `[inherited]`

Modbus function 15 (0F hex), Force Multiple Coils.

Writes binary values into a sequence of discrete outputs (coils, 0:00000 table).

Parameters:

	slaveAddr	Modbus address of slave device or unit identifier (Range: 1 - 255)
	startRef	Start reference (Range: depends on configuration setting)
	bitArr	Buffer which contains the data to be sent. The length of the array determines how many coils are written (Range: 1-1968).

Exceptions:

	IllegalStateException	Port or connection is closed
	IOException	An I/O error occured
	BusProtocolException	A protocol failure occured. See descendants of BusProtocolException for a more detailed failure list.

Note:: Broadcast supported for serial protocols

synchronized void readMultipleRegisters	(	int	slaveAddr,
		int	startRef,
		short[]	regArr
	)			throws IOException, BusProtocolException `[inherited]`

Modbus function 3 (03 hex), Read Holding Registers/Read Multiple Registers.

Reads the contents of the output registers (holding registers, 4:00000 table).

Parameters:

	slaveAddr	Modbus address of slave device or unit identifier (Range: 1 - 255)
	startRef	Start reference (Range: depends on configuration setting)
	regArr	Buffer which will be filled with the data read. The length of the array determines how many registers are read (Range: 1-125).

Exceptions:

	IOException	An I/O error occured
	IllegalArgumentException	A parameter is out of range
	BusProtocolException	A protocol failure occured. See descendants of BusProtocolException for a more detailed failure list.

Note:: No broadcast supported

synchronized void readMultipleRegisters	(	int	slaveAddr,
		int	startRef,
		int[]	int32Arr
	)			throws IOException, BusProtocolException `[inherited]`

Modbus function 3 (03 hex) for 32-bit int data types, Read Holding Registers/Read Multiple Registers as int data.

Reads the contents of pairs of two consecutive output registers (holding registers, 4:00000 table) into float values.

Remarks:: Depending on the 32-bit Mode setting, an int will be transferred as two consecutive 16-bit registers (Standard) or as one 32-bit register (Daniel/Enron).

Parameters:

	slaveAddr	Modbus address of slave device or unit identifier (Range: 1 - 255)
	startRef	Start reference (Range: depends on configuration setting)
	int32Arr	Buffer which will be filled with the data read. The length of the array determines how many registers are read (Range: 1-62).

Exceptions:

	IOException	An I/O error occured
	IllegalArgumentException	A parameter is out of range
	BusProtocolException	A protocol failure occured. See descendants of BusProtocolException for a more detailed failure list.

Note:: No broadcast supported

synchronized void readMultipleRegisters	(	int	slaveAddr,
		int	startRef,
		float[]	float32Arr
	)			throws IOException, BusProtocolException `[inherited]`

Modbus function 3 (03 hex) for 32-bit float data types, Read Holding Registers/Read Multiple Registers as float data.

Reads the contents of pairs of two consecutive output registers (holding registers, 4:00000 table) into float values.

Remarks:: Depending on the 32-bit Mode setting, an int will be transferred as two consecutive 16-bit registers (Standard) or as one 32-bit register (Daniel/Enron).

Parameters:

	slaveAddr	Modbus address of slave device or unit identifier (Range: 1 - 255)
	startRef	Start reference (Range: depends on configuration setting)
	float32Arr	Buffer which will be filled with the data read. The length of the array determines how many registers are read (Range: 1-62).

Exceptions:

	IOException	An I/O error occured
	IllegalArgumentException	A parameter is out of range
	BusProtocolException	A protocol failure occured. See descendants of BusProtocolException for a more detailed failure list.

Note:: No broadcast supported

synchronized void readInputRegisters	(	int	slaveAddr,
		int	startRef,
		short[]	regArr
	)			throws IOException, BusProtocolException `[inherited]`

Modbus function 4 (04 hex), Read Input Registers.

Read the contents of the input registers (3:00000 table).

Parameters:

	slaveAddr	Modbus address of slave device or unit identifier (Range: 1 - 255)
	startRef	Start reference (Range: depends on configuration setting)
	regArr	Buffer which will be filled with the data read. The length of the array determines how many registers are read (Range: 1-125).

Exceptions:

	IOException	An I/O error occured
	IllegalArgumentException	A parameter is out of range
	BusProtocolException	A protocol failure occured. See descendants of BusProtocolException for a more detailed failure list.

Note:: No broadcast supported

synchronized void readInputRegisters	(	int	slaveAddr,
		int	startRef,
		int[]	int32Arr
	)			throws IOException, BusProtocolException `[inherited]`

Modbus function 4 (04 hex) for 32-bit int data types, Read Input Registers as int data.

Reads the contents of pairs of two consecutive input registers (3:00000 table) into float values.

Remarks:: Depending on the 32-bit Mode setting, an int will be transferred as two consecutive 16-bit registers (Standard) or as one 32-bit register (Daniel/Enron).

Parameters:

	slaveAddr	Modbus address of slave device or unit identifier (Range: 1 - 255)
	startRef	Start reference (Range: depends on configuration setting)
	int32Arr	Buffer which will be filled with the data read. The length of the array determines how many registers are read (Range: 1-62).

Exceptions:

	IOException	An I/O error occured
	IllegalArgumentException	A parameter is out of range
	BusProtocolException	A protocol failure occured. See descendants of BusProtocolException for a more detailed failure list.

Note:: No broadcast supported

synchronized void readInputRegisters	(	int	slaveAddr,
		int	startRef,
		float[]	float32Arr
	)			throws IOException, BusProtocolException `[inherited]`

Modbus function 4 (04 hex) for 32-bit float data types, Read Input Registers as float data.

Reads the contents of pairs of two consecutive input registers (3:00000 table) into float values.

Remarks:: Depending on the 32-bit Mode setting, an int will be transferred as two consecutive 16-bit registers (Standard) or as one 32-bit register (Daniel/Enron).

Parameters:

	slaveAddr	Modbus address of slave device or unit identifier (Range: 1 - 255)
	startRef	Start reference (Range: depends on configuration setting)
	float32Arr	Buffer which will be filled with the data read. The length of the array determines how many registers are read (Range: 1-62).

Exceptions:

	IOException	An I/O error occured
	IllegalArgumentException	A parameter is out of range
	BusProtocolException	A protocol failure occured. See descendants of BusProtocolException for a more detailed failure list.

Note:: No broadcast supported

synchronized void writeSingleRegister	(	int	slaveAddr,
		int	regAddr,
		short	regVal
	)			throws IOException, BusProtocolException `[inherited]`

Modbus function 6 (06 hex), Preset Single Register/Write Single Register.

Writes a value into a single output register (holding register, 4:00000 reference).

Parameters:

	slaveAddr	Modbus address of slave device or unit identifier (Range: 0 - 247)
	regAddr	Register address (Range: depends on configuration setting)
	regVal	Data to be sent

Exceptions:

	IllegalStateException	Port or connection is closed
	IOException	An I/O error occured
	IllegalArgumentException	A parameter is out of range
	BusProtocolException	A protocol failure occured. See descendants of BusProtocolException for a more detailed failure list.

Note:: Broadcast supported for serial protocols

synchronized void writeMultipleRegisters	(	int	slaveAddr,
		int	startRef,
		short[]	regArr
	)			throws IOException, BusProtocolException `[inherited]`

Modbus function 16 (10 hex), Preset Multiple Registers/Write Multiple Registers.

Writes values into a sequence of output registers (holding registers, 4:00000 table).

Parameters:

	slaveAddr	Modbus address of slave device or unit identifier (Range: 0 - 247)
	startRef	Start reference (Range depends on configuration setting)
	regArr	Buffer with the data to be sent. The length of the array determines how many registers are sent (Range: 1-61).

Exceptions:

	IllegalStateException	Port or connection is closed
	IOException	An I/O error occured
	IllegalArgumentException	A parameter is out of range
	BusProtocolException	A protocol failure occured. See descendants of BusProtocolException for a more detailed failure list.

Note:: Broadcast supported for serial protocols

synchronized void writeMultipleRegisters	(	int	slaveAddr,
		int	startRef,
		int[]	int32Arr
	)			throws IOException, BusProtocolException `[inherited]`

Modbus function 16 (10 hex) for 32-bit int data types, Preset Multiple Registers/Write Multiple Registers with int data.

Writes int values into a pairs of output registers (holding registers, 4:00000 table).

Remarks:: Depending on the 32-bit Mode setting, an int will be transferred as two consecutive 16-bit registers (Standard) or as one 32-bit register (Daniel/Enron).

Parameters:

	slaveAddr	Modbus address of slave device or unit identifier (Range: 0 - 247)
	startRef	Start reference (Range: depends on configuration setting)
	int32Arr	Buffer with the data to be sent. The length of the array determines how many registers are sent (Range: 1-61).

Exceptions:

	IOException	An I/O error occured
	IllegalArgumentException	A parameter is out of range
	BusProtocolException	A protocol failure occured. See descendants of BusProtocolException for a more detailed failure list.

Note:: Broadcast supported for serial protocols

synchronized void writeMultipleRegisters	(	int	slaveAddr,
		int	startRef,
		float[]	float32Arr
	)			throws IOException, BusProtocolException `[inherited]`

Modbus function 16 (10 hex) for 32-bit float data types, Preset Multiple Registers/Write Multiple Registers with float data.

Writes float values into a pairs of output registers (holding registers, 4:00000 table).

Remarks:: Depending on the 32-bit Mode setting, an int will be transferred as two consecutive 16-bit registers (Standard) or as one 32-bit register (Daniel/Enron).

Parameters:

	slaveAddr	Modbus address of slave device or unit identifier (Range: 0 - 247)
	startRef	Start reference (Range: depends on configuration setting)
	float32Arr	Buffer with the data to be sent. The length of the array determines how many registers are sent (Range: 1-61).

Exceptions:

	IOException	An I/O error occured
	IllegalArgumentException	A parameter is out of range
	BusProtocolException	A protocol failure occured. See descendants of BusProtocolException for a more detailed failure list.

Note:: Broadcast supported for serial protocols

synchronized void maskWriteRegister	(	int	slaveAddr,
		int	regAddr,
		short	andMask,
		short	orMask
	)			throws IOException, BusProtocolException `[inherited]`

Modbus function 22 (16 hex), Mask Write Register.

Masks bits according to an AND & an OR mask into a single output register (holding register, 4:00000 reference). Masking is done as follows: result = (currentVal AND andMask) OR (orMask AND (NOT andMask))

Parameters:

	slaveAddr	Modbus address of slave device or unit identifier (Range: 1 - 255)
	regAddr	Register address (Range: depends on configuration setting)
	andMask	Mask to be applied as a logic AND to the register
	orMask	Mask to be applied as a logic OR to the register

Exceptions:

	IllegalStateException	Port or connection is closed
	IOException	An I/O error occured
	IllegalArgumentException	A parameter is out of range
	BusProtocolException	A protocol failure occured. See descendants of BusProtocolException for a more detailed failure list.

Note:: No broadcast supported

synchronized void readWriteRegisters	(	int	slaveAddr,
		int	readRef,
		short[]	readArr,
		int	writeRef,
		short[]	writeArr
	)			throws IOException, BusProtocolException `[inherited]`

Modbus function 23 (17 hex), Read/Write Registers.

Combines reading and writing of the output registers in one transaction (holding registers, 4:00000 table).

Parameters:

	slaveAddr	Modbus address of slave device or unit identifier (Range: 1 - 255)
	readRef	Start reference for reading (Range: depends on configuration setting)
	readArr	Buffer which will contain the data read. The length of the array determines how many registers are read (Range: 1-125).
	writeRef	Start reference for writing (Range: depends on configuration setting)
	writeArr	Buffer with data to be sent. The length of the array determines how many registers are sent (Range: 1-121).

Exceptions:

	IllegalStateException	Port or connection is closed
	IOException	An I/O error occured
	IllegalArgumentException	A parameter is out of range
	BusProtocolException	A protocol failure occured. See descendants of BusProtocolException for a more detailed failure list.

Note:: No broadcast supported

synchronized byte readExceptionStatus ( int slaveAddr ) throws IOException, BusProtocolException [inherited]

Modbus function 7 (07 hex), Read Exception Status.

Reads the eight exception status coils within the slave device.

Parameters:

slaveAddr

Modbus address of slave device or unit identifier (Range: 1 - 255)

Exceptions:

	IllegalStateException	Port or connection is closed
	IOException	An I/O error occured
	IllegalArgumentException	A parameter is out of range
	BusProtocolException	A protocol failure occured. See descendants of BusProtocolException for a more detailed failure list.

Note:: No broadcast supported

synchronized void setTimeout ( int timeOut ) [inherited]

Configures time-out.

This function sets the time-out to the specified value. A value of 0 disables the time-out, which causes all subsequent calls to data and control functions to block.

Note:: A port or connection must be closed in order to configure it.

Parameters:

timeOut

Timeout value in ms (Range: 0 - 100000), 0 disables time-out

Exceptions:

	IllegalStateException	Port is open
	IllegalArgumentException	Parameter is out of range

int getTimeout ( ) [inherited]

Returns the operation time-out value.

Returns:: Timeout value in ms

synchronized void setPollDelay ( int pollDelay ) [inherited]

Configures poll delay.

This function sets the delay time which applies between two consecutive Modbus read/write. A value of 0 disables the poll delay.

Note:: A port or connection must be closed in order to configure it.

Parameters:

pollDelay

Delay time in ms (Range: 0 - 100000), 0 disables poll delay

Exceptions:

	IllegalStateException	Port is open
	IllegalArgumentException	Parameter is out of range

int getPollDelay ( ) [inherited]

Returns the poll delay time.

Returns:: Delay time in ms, 0 if poll delay is switched off

synchronized void setRetryCnt ( int retryCnt ) [inherited]

Configures the automatic retry setting.

A value of 0 disables any automatic retries.

Note:: A port or connection must be closed in order to configure it.

Parameters:

retryCnt

Retry count (Range: 0 - 10), 0 disables retries

Exceptions:

	IllegalStateException	Port is open
	IllegalArgumentException	Parameter is out of range

int getRetryCnt ( ) [inherited]

Returns the automatic retry count.

Returns:: Retry count

synchronized long getTotalCounter ( ) [inherited]

Returns how often a transmit/receive cycle has been executed.

Returns:: Counter value

synchronized long getSuccessCounter ( ) [inherited]

Returns how often a transmit/receive cycle was successful.

Returns:: Counter value

void configureStandard32BitMode ( ) [inherited]

Configures all slaves for Standard 32-bit Mode.

In Standard 32-bit Register Mode a 32-bit value is transmitted as two consecutive 16-bit Modbus registers.

Remarks:: This is the default mode

synchronized void configureStandard32BitMode ( int slaveAddr ) [inherited]

Configures a slave for Standard 32-bit Register Mode.

In Standard 32-bit Register Mode a 32-bit value is transmitted as two consecutive 16-bit Modbus registers.

Parameters:

slaveAddr

Modbus address of slave device or unit identifier (Range: 1 - 255). A value of zero configures the behaviour for broadcasting.

Remarks:: This is the default mode

void configureSingleReg32BitMode ( ) [inherited]

Configures all slaves for Single Register 32-bit Mode.

Some Modbus flavours like the Daniel/Enron protocol represent a 32-bit value using one 32-bit Modbus register instead of two 16-bit registers.

synchronized void configureSingleReg32BitMode ( int slaveAddr ) [inherited]

Configures all slaves for Single Register 32-bit Mode.

Some Modbus flavours like the Daniel/Enron protocol represent a 32-bit value using one 32-bit Modbus register instead of two 16-bit registers.

Parameters:

slaveAddr

Modbus address of slave device or unit identifier (Range: 1 - 255). A value of zero configures the behaviour for broadcasting.

void configureCountFromOne ( ) [inherited]

Configures the reference counting scheme to start with one for all slaves.

This renders the reference range to be 1 to 0x10000 and register #0 is an illegal register.

Remarks:: This is the default mode

synchronized void configureCountFromOne ( int slaveAddr ) [inherited]

Configures a slave's reference counting scheme to start with one.

This renders the reference range to be 1 to 0x10000 and register #0 is an illegal register.

Parameters:

slaveAddr

Modbus address of slave device or unit identifier (Range: 1 - 255). A value of zero configures the behaviour for broadcasting.

Remarks:: This is the default mode

void configureCountFromZero ( ) [inherited]

Configures the reference counting scheme to start with zero for all slaves.

This is also known as PDU addressing.

This renders the valid reference range to be 0 to 0xFFFF.

This renders the first register to be #0 for all slaves.

synchronized void configureCountFromZero ( int slaveAddr ) [inherited]

Configures a slave's reference counting scheme to start with zero.

This is also known as PDU addressing.

This renders the valid reference range to be 0 to 0xFFFF.

Parameters:

slaveAddr

Modbus address of slave device or unit identifier (Range: 1 - 255). A value of zero configures the behaviour for broadcasting.

void configureLittleEndianInts ( ) [inherited]

Disables word swapping for int data type functions for all slaves.

Modbus is using little-endian word order for 32-bit values. This setting assumes that the slave also serves 32-bit data in in little little-endian word order.

Remarks:: This is the default mode

synchronized void configureLittleEndianInts ( int slaveAddr ) [inherited]

Disables word swapping for int data type functions on a per slave basis.

Modbus is using little-endian word order for 32-bit values. This setting assumes that the slave also serves 32-bit data in little little-endian word order.

Remarks:: This is the default mode

Parameters:

slaveAddr

Modbus address of slave device or unit identifier (Range: 1 - 255). A value of zero configures the behaviour for broadcasting.

void configureBigEndianInts ( ) [inherited]

Configures int data type functions to do a word swap for all slaves.

Modbus is using little-endian word order for 32-bit values. The data transfer functions operating upon 32-bit int data types can be configured to do a word swap which enables them to read 32-bit data correctly from a big-endian machine.

synchronized void configureBigEndianInts ( int slaveAddr ) [inherited]

Enables int data type functions to do a word swap on a per slave basis.

Modbus is using little-endian word order for 32-bit values. The data transfer functions operating upon 32-bit int data types can be configured to do a word swap which enables them to read 32-bit data correctly from a big-endian machine.

Parameters:

slaveAddr

Modbus address of slave device or unit identifier (Range: 1 - 255). A value of zero configures the behaviour for broadcasting.

void configureLittleEndianFloats ( ) [inherited]

Disables float data type functions to do a word swap for all slaves.

Modbus is using little-endian word order for 32-bit values. This setting assumes that the slaves also serves 32-bit floats in little little-endian word order which is the most common case.

Remarks:: This is the default mode

synchronized void configureLittleEndianFloats ( int slaveAddr ) [inherited]

Disables float data type functions to do a word swap on a per slave basis.

Modbus is using little-endian word order for 32-bit values. This setting assumes that the slave also serves 32-bit floats in little little-endian word order which is the most common case.

Remarks:: This is the default mode

Parameters:

slaveAddr

Modbus address of slave device or unit identifier (Range: 1 - 255). A value of zero configures the behaviour for broadcasting.

void configureSwappedFloats ( ) [inherited]

Configures float data type functions to do a word swap for all slaves.

The data functions operating upon 32-bit float data types can be configured to do a word swap.

Note:: Most platforms store floats in IEEE 754 little-endian order which does not need a word swap.

synchronized void configureSwappedFloats ( int slaveAddr ) [inherited]

Enables float data type functions to do a word swap on a per slave basis.

The data functions operating upon 32-bit float data types can be configured to do a word swap.

Note:: Most platforms store floats in IEEE 754 little-endian order which does not need a word swap.

Parameters:

slaveAddr

Modbus address of slave device or unit identifier (Range: 1 - 255). A value of zero configures the behaviour for broadcasting.

FieldTalk Modbus Master Library, Java Edition
Library version 2.6.5

MbusSerialMasterProtocol Class Reference

Public Member Functions

Static Public Attributes

Bit Access

Register Access (16-bit, 32-bit and floating point)

Diagnostics

Custom Function Codes

Protocol Configuration

Transmission Statistic Functions

Slave Configuration

Detailed Description

Member Function Documentation
